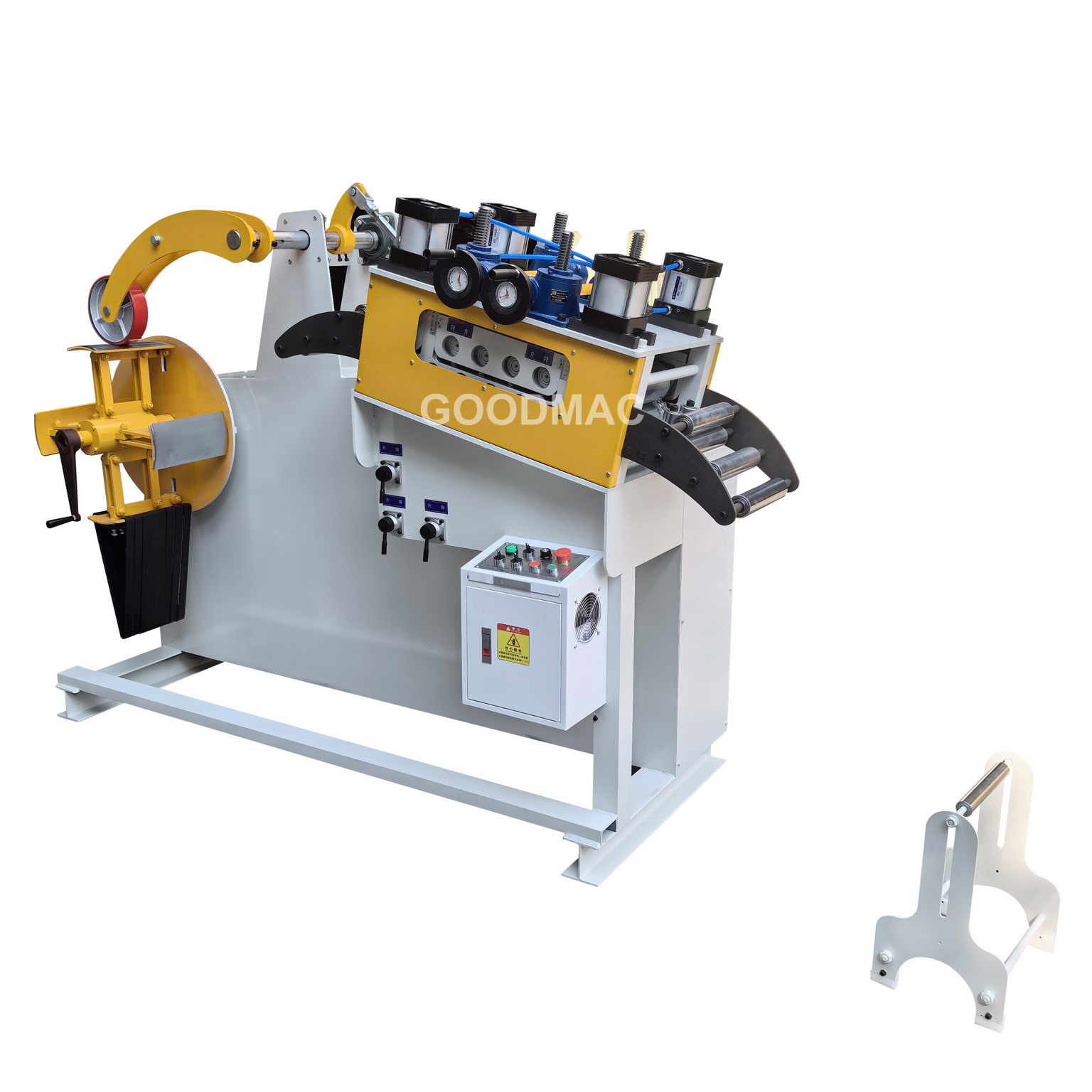

0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T

Author:admin    Pub date:2021-12-25 20:33:41     Views:


0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T
  • 0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T
  • 0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T
  • 0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T
  • 0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T
  • 0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T
  • 0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T
  • 0.5-4.5mm decoiler and straightener 2 in 1, model GO-200T, GO-300T, GO-400T, GO-500T, GO-600T

I. Main features
1. These GO-T series machines are very excellent combined decoiling and straightening machines for thick metal sheet coils.
2. They can suit for various metal sheet coil material, such as cold rolled steel, hot rolled steel, galvanized steel etc.
3. With a combined structure design, as 2 in 1, each machine can save workshop space obviously, rather than a separate decoiler and a separate straightener.
4. As a combined machine, it can decoil and straighten the metal sheet synchronously.
5. It adopts good quality components, for long service life and low malfunction.
6. Its mandrel expanding adjusting is manual, but automatic expanding adjusting can be chose through a hydraulic cylinder for automatic operation.
7. A pneumatic holding down device is equipped as standard device, to prevent thick metal sheet coil loosing.
8. Its decoiler does not have a motor motive, because the straightener can pull the metal sheet from the decoiler synchronously.
9. There is a manual adjustable brake device for the decoiler, so it can stop decoiling smoothly.
10. Its straightening rollers are made of high quality steel, with special heat treatment, with high hardness and abrasion performance, for getting perfect straightening performance.
11. With four pneumatic cylinders at the straightener’s entrance and exit, so its upper pinching rollers can clamp and release automatically. With worm gear adjusting for upper straightening rollers, the straightener can get perfect straightening performance, and it is easy to operate it.
12. There is a good electric control box with standard components, so it is operated and protects users’ safety very well.
13. It has an electronic sensor rack, for metal sheet contacting and automatic loop control.
14. An inverter is equipped as stand device in order to get and adjust variable straightening speed easily.
15. Some special requirements can be manufactured for you.

II. Specification parameter

ModelGO-200TGO-300TGO-400TGO-500TGO-600T
Metal sheet coil width200mm300mm400mm500mm600mm
Metal sheet thickness0.5-4.5mm (Thick)
Coil weight1000KGS1000KGS2000KGS2000KGS3000KGS
Coil inside diameter450-530mm
Coil outside diameter1200mm
Straightening speed0-15m/min
Electrical power380V, 3 phase, 50HZ (or other)
Motor power2.2KW3.7KW3.7KW5.5KW
Straightening rollers diameter75mm
Straightening rollers quantity7 pieces (upper 3, lower 4)
Mandrel expandingmanual (hydraulic expanding is optional.)
Coil holding down device (arm shape)standard (pneumatic)
Pressing for upper feeding rollerspneumatic cylinders
Adjusting for upper straightening rollersworm gears
Inverter for adjusting speedstandard (Delta)
