Motorized light duty decoiler, model CR-200
Your location: Home > Products > Decoilers > Motorized light duty decoiler, model CR-200

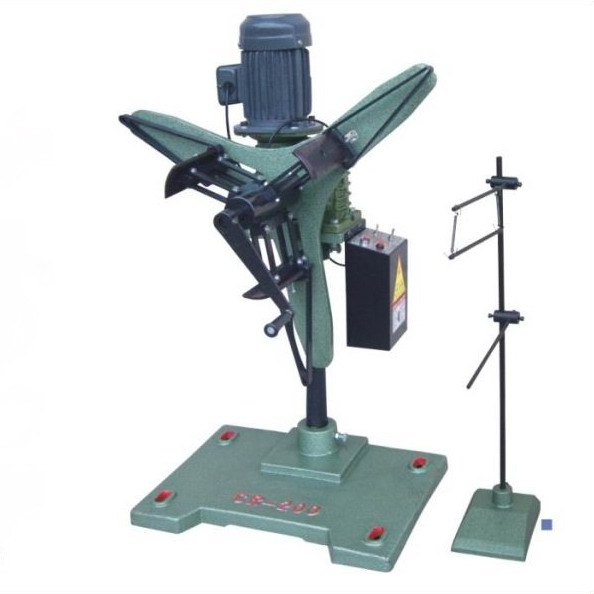

Motorized light duty decoiler, model CR-200

Author:admin    Pub date:2022-01-04 14:47:31     Views:


Motorized light duty decoiler, model CR-200
  • Motorized light duty decoiler, model CR-200

I. Main features
1. This type light duty decoiler can decoil small metal sheet coils very well.
2. It has a motor drive, so can decoil and recoil automatically.
3. It has a compact structure for stable decoiling performance.
4. Its mandrel expanding adjusting is manual, but easy to use.
5. It has a separate sensor rack for automatic loop control.

II. Specification parameter

ModelCR-200
Metal sheet coil width200mm
Coil inside diameter200-300mm
Coil outside diameter800mm
Metal sheet coil weight200KGS
Decoiling speed16 m/min
Mandrel expandingmanual
Electrical power380V, 3 phase, 50HZ (or other)
Motor power1HP
