I. Features

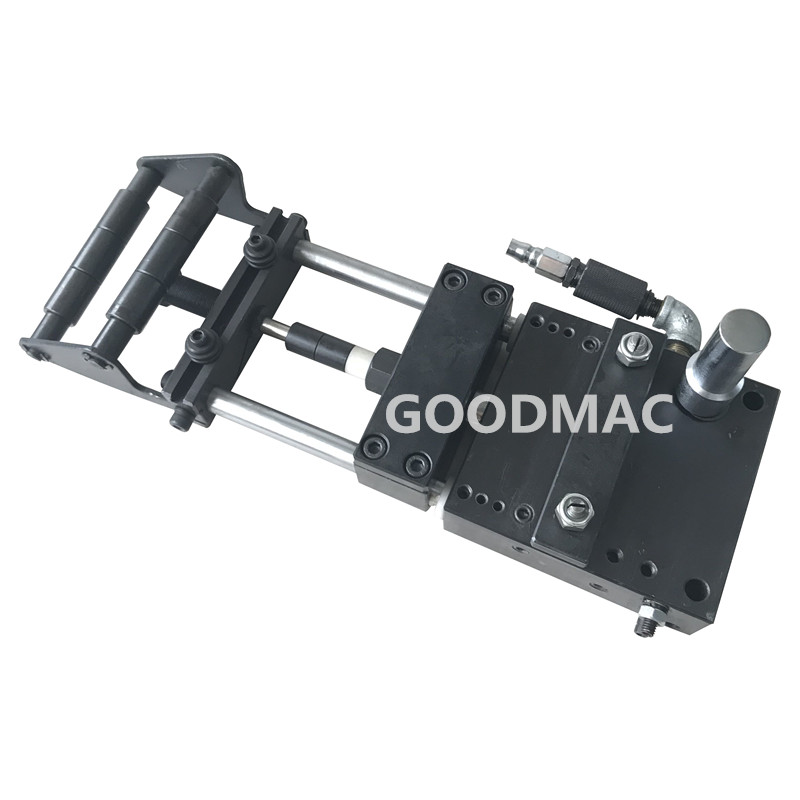

1. These AF series small air pneumatic feeders are very compact and efficient compact feeding machines for press machines (power presses) commonly.
2. User can adjust and change feeding pitch lengths through an adjusting screw easily.
3. A solenoid valve for releasing activation can be equipped as optional device.
4. A solenoid valve for feeding activation can be equipped as optional device also.
5. Air pneumatic feeders are much cheaper than NC servo roll feeders, mechanical roll feeders etc.
6. They are suitable for normal precision stamping and low budget.
7. All standard accessories are provided for you.
8. Optional spare parts are provided if required.
II. Specification parameter
| Model | AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C | AF-7C |
| Applicable metal sheet width (mm) | 50 | 65 | 80 | 100 | 150 | 200 | 250 |
| Metal sheet thickness (mm) | 0.1-0.5 | 0.1-0.8 | 0.1-1.2 | 0.1-1.5 | 0.1-2 | 0.1-2 | 0.1-2.5 |
| Feeding length per stroke (mm) | 50 | 80 | 80 | 130 | 150 | 200 | 250 |
| Feeding speed maximum | 12m/min | ||||||
| Feeding trokes per minute | 200 | 160 | 150 | 93 | 80 | 60 | 48 |
| Pneumatic pressure | 4.5KG/cm2 | ||||||
| Air consumption (L/min) | 26.5 | 38.5 | 47 | 58.6 | 100.5 | 108.5 | 152 |
| Net weight (KGS) | 8.8 | 9.6 | 12.8 | 19.6 | 38.4 | 52.4 | 80 |
