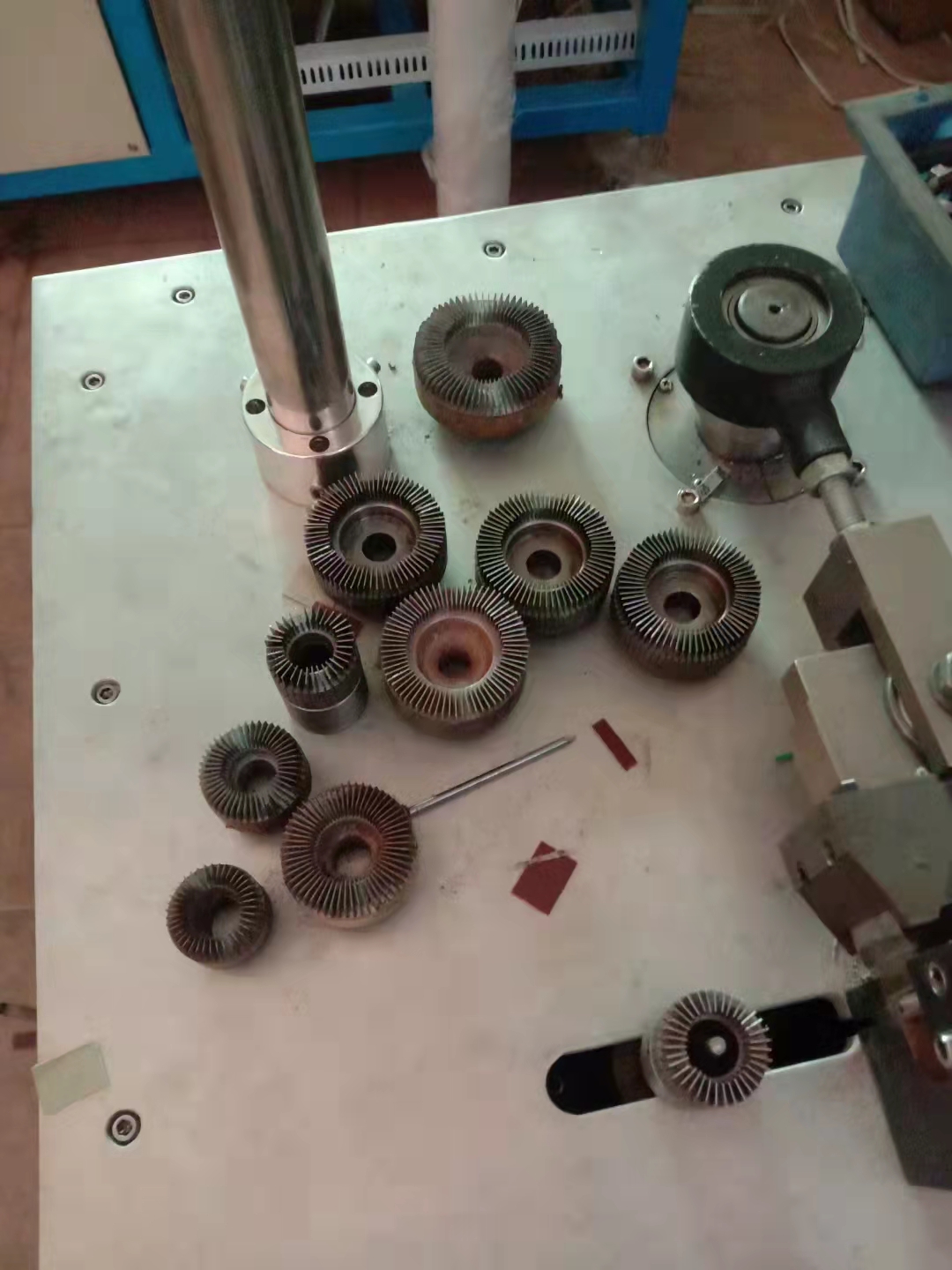

Automatic abrasive flap wheel making machine forming machine

I. Specification parameter
1. Model: FWM-80
2. Flap wheel diameter: 20-80mm.
3. Feeding flap length: 0-30mm.
4. Feeding flap width: 15-30mm.
5. Production capacity: 2500-3000 pieces per day.
6. Required operation: 1.
7. Automatic level: fully automatic.
8. Required electrical power: 220V, 50HZ.
9. Motor power: 3KW.
10. Dimension: approx. 1250mm×660mm×700mm
11. Packed dimension: approx. 1350mm×760mm×900mm
12. Cutting method: connection rod.
13. Servo motor: Delta brand.
14. PLC: Delta brand.
15. HMI (touch screen): WEINVIEW.
16. Speed reducer: Taiwan brand.
17. Sensor switch: Autonics.
18. Photoelectric switch: Autonics.
19. Approach switch: Autonics.
